Plain-English vehicle guide

Chevrolet Bolt charging

The Chevrolet Bolt is an electric wagon. You fill it from a J1772 plug at home and from a CCS1 plug on a long drive, and its longest 2027 version is rated at 262 miles on a full battery. Every number below says which version of the car it belongs to, and the two sliders below turn a charge into a time and a price.

Find a CCS1 charger Plan a charge All Chevrolet models

Official range (EPA)

262 mi

2027 BOLT

How far a full battery is rated to go on the US test.

Battery size

65 kWh

catalogue

The size of the tank. Bigger means more miles between stops.

Fastest charge

150 kW

10–80% in 25 min

How wide the hose is at a fast charger.

Plugs it uses

CCS1

J1772 at home and slow posts

The shape that has to fit the socket.

The range and battery cards name different versions on purpose. One is the longest 2027 row the EPA tested, the other is the catalogue's charging record — because the EPA lists a range per trim and the catalogue lists one battery per trim. Nothing below quietly mixes them.

Wagon · 2027 · FWD

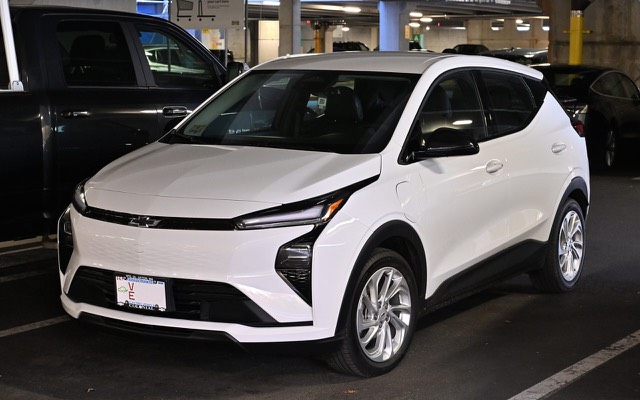

Photo 4300streetcar · CC BY 4.0 · via Wikimedia Commons

The photo shows this model at a show or in a car park, not the exact car for sale.

Start here

Six terms, in plain words

None of this needs a physics degree. Each term on a window sticker is one idea, and here they are in the order they turn up.

EPA range

A score from one official test.

The car runs on a rolling road until the battery is empty. Every car sits the same test, so the numbers compare fairly. It is a lab score, not a promise: a cold morning or a steady 75 mph uses more energy than the test did.

US trim

A version of the same car.

The body is the same; the wheels, motors or battery are not. A model is usually sold in several versions — Pure, Touring and Grand Touring on this car — and the EPA publishes a range for each one it tested, which is why one model carries several numbers for one year.

kWh

The size of the tank.

A kilowatt-hour is a unit of energy. A bigger battery holds more of it and goes further. This page shows the usable figure where the data says so, because a pack never gives up every last bit.

kW

How wide the hose is.

A kilowatt is a rate: energy per second. The same battery fills from a 1.4 kW wall socket or a 200 kW-plus fast charger. Wide hose, quicker fill — as long as the car and the station both agree.

AC and DC

Two kinds of electricity.

Home wiring supplies AC, and the car's own charger turns it into DC. A fast charger does that conversion in the station and feeds the battery directly, which is why it is many times quicker.

10–80%

The happy middle of a battery.

Packs accept full power in the middle and slow right down past 80% to protect the cells. That is why a road-trip stop is usually 10% to 80%: the last fifth can take as long as the first half.

Range

How far can it go on one charge?

The Chevrolet Bolt is rated between 262 and 262 miles on a full battery, depending on the version; the highest belongs to the 2027 BOLT.

The official figure comes from the EPA, the US agency that scores every car the same way: a full battery, a rolling road, and a number of miles at the end. It is the fair way to compare two cars, and still only a lab score — wind, hills, heaters and speed all take a bite out of it.

Check any car on fueleconomy.gov

Model year

In 2027, the Chevrolet Bolt was rated between 262 mi and 262 mi on a full battery, depending on the version.

BOLT
262 mi

Trim names are the EPA's own labels, unedited, so “G Touring” is short for Grand Touring. Each row is a version the EPA tested; a version it did not test has no row. Figures are miles on the EPA's lab test, not a prediction of your commute.

Charging time

How long does a charge take?

A 10–80% fast stop takes about 25 minutes at a charger that can deliver the car's peak, and a full charge on a 7.2 kW home charger takes about 10 hours.

Three things decide it, and the slowest one wins: what the station can supply, what the car will accept, and how much the battery wants at that moment. Move the sliders and the answer changes with you.

Step 1 — where are you plugging in?

The usual highway stop.

Step 2 — how full is the battery, and how full do you want it?

0%80% — most cars slow down here100%

Start at20%Stop at80%

60% of the battery, from 20% to 80%.

Step 3 — what do you pay per kWh?

Your charge

Time at this charger: 21 min
Cost: $13.65
Energy: 39 kWh

About a coffee break. The session draws about 109 kW on average — a peak figure would be a promise the last part of the charge does not keep.

Times use the 65 kWh battery and 150 kW DC peak from the catalogue record, and scale from its 25-minute 10–80% figure. Above 80% the estimate assumes a much slower rate; cold batteries and shared stations can be slower still.

The station

1.4–350 kW

A wall socket gives about 1.4 kW; a highway post 150–350 kW. The site's rating is a ceiling, not a promise.

The car

11.5 kW AC

The car takes no more than its own limit — 150 kW on DC, 11.5 kW on AC. A bigger charger cannot change that.

The battery

slower past 80%

Above 80% the pack asks for far less power to protect the cells, which is why trips stop at 80%.

The reasoning behind those numbers is on how long EV charging takes and Level 2 vs DC fast.

Plugs

Which plug fits this car?

Only two shapes matter: the one on the car and the one on the charger. The AC plug covers home charging and slow public posts; the DC plug covers fast stops on a trip.

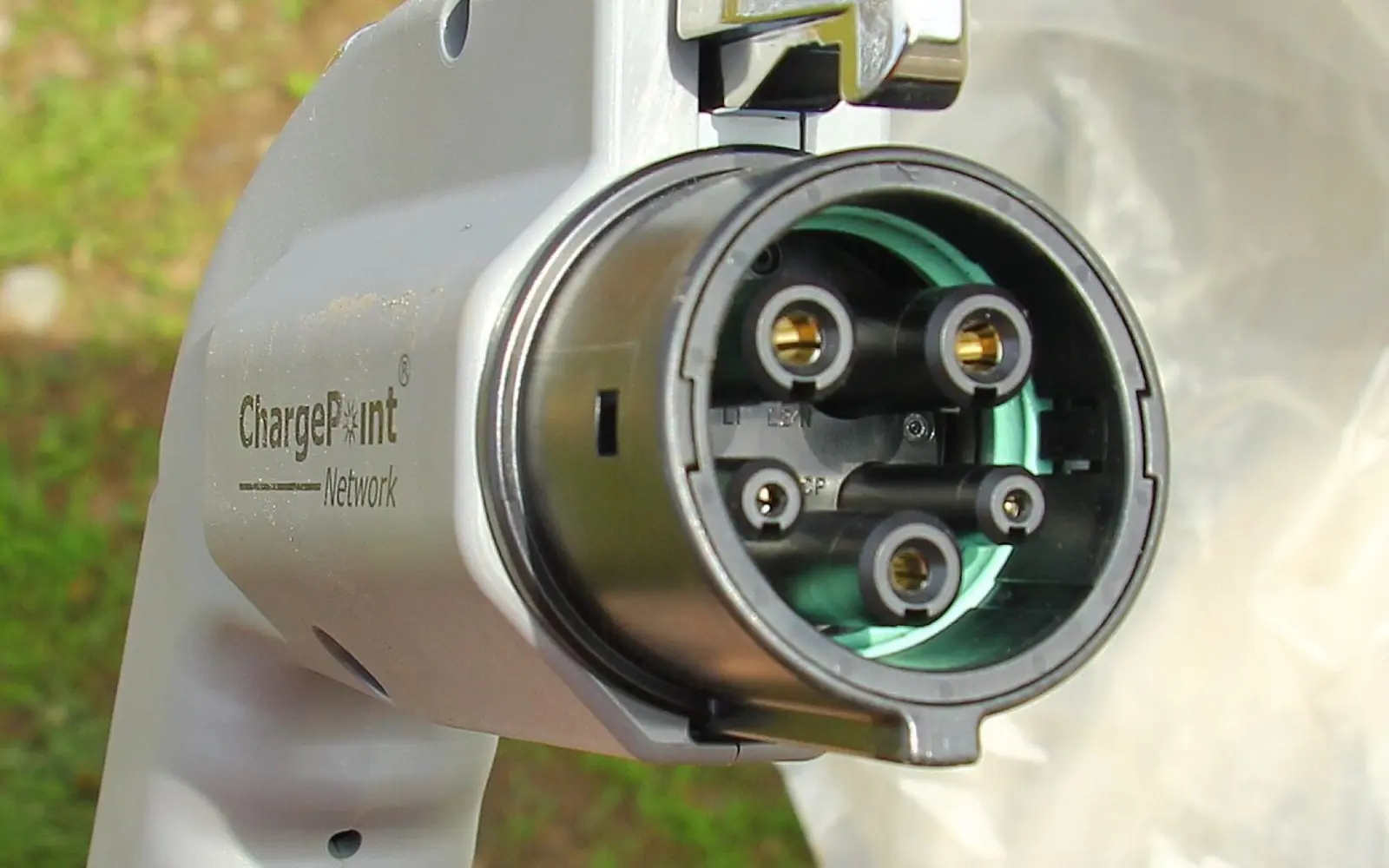

J1772

AC charging

SAE J1772 · Typically 3.3–19.2 kW

J1772 is the AC connector on almost every non-Tesla EV and plug-in hybrid sold in North America. At public stations it is usually a Level 2 charger.

Where you meet it: destination charging while parked.

More about J1772 Stations with this plug

Photo: Michael Hicks (mulad) · CC BY 2.0

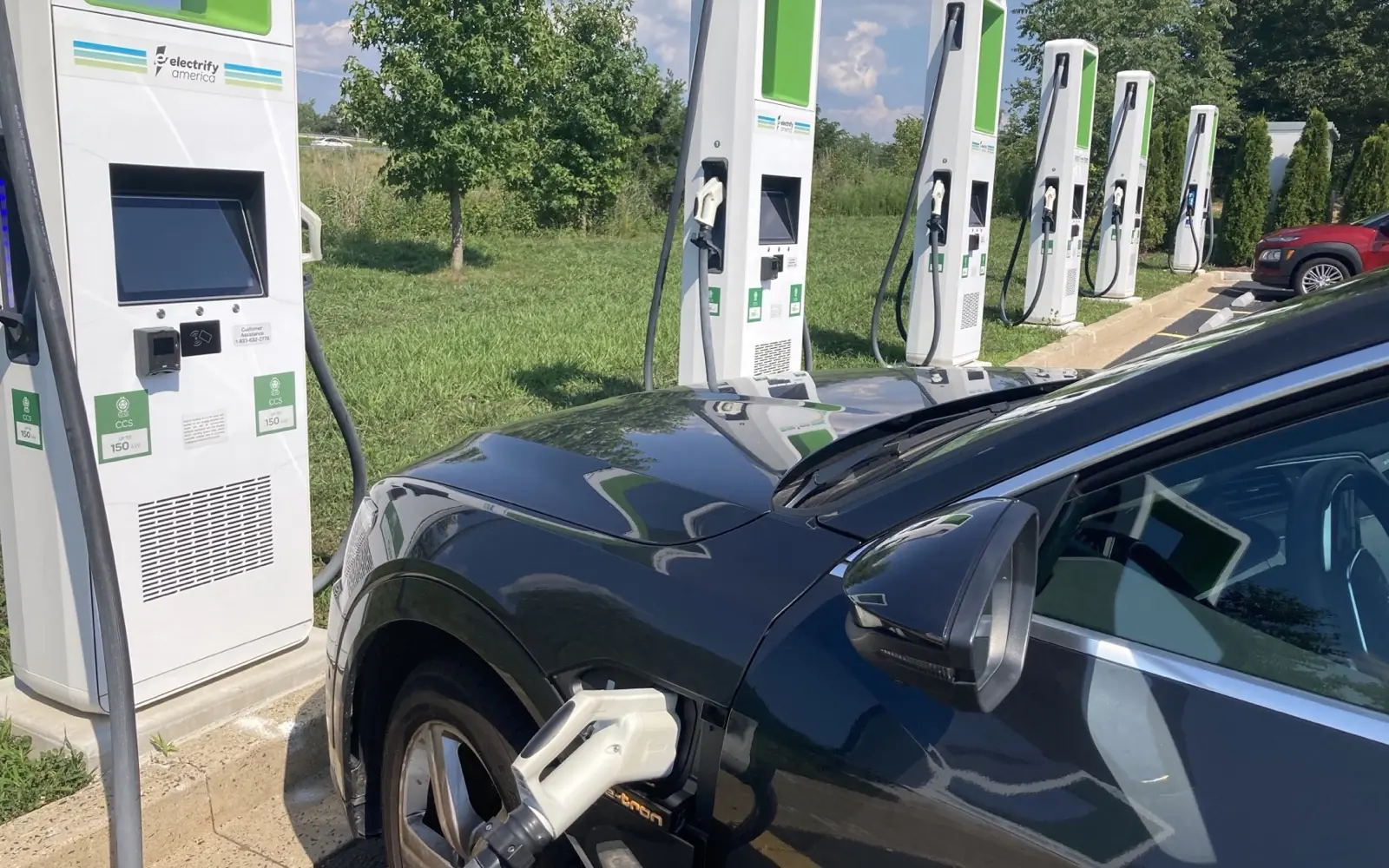

CCS1

DC charging

SAE J1772 CCS Combo 1 · Typically 50–350 kW

CCS1 is the DC fast connector on most non-Tesla EVs in North America. It keeps the J1772 shape for the AC pins and adds two DC pins underneath.

Where you meet it: fast charging on a longer trip.

More about CCS1 Stations with this plug

Photo: Ken Fields · CC BY-SA 2.0

An adapter changes the shape of the plug, not what the car can accept or what the station can supply. It can bridge a standard; it cannot create power, access or a faster session.

This page lists the connectors the model reports. The directory records the connector a station reports, so a station that carries both a J1772 post and a CCS1 fast charger appears under each — and a car is not guaranteed a free one.

Cost

What does a charge cost?

Charging is priced by the kilowatt-hour, like electricity at home. The directory's median tariff is $0.35 per kWh — the middle of the prices networks actually list, not a quote for any one station.

At that median, filling the 65 kWh battery from empty at a DC post bills about $23.95. A 10–80% stop, the usual road-trip habit, moves about 70% of it and bills about $16.76. Type your own price into the calculator above to see your number instead.

Both figures are metered energy, not battery energy: a DC post puts roughly 95% of what it draws into the pack, so the bill sits slightly above battery × price. At home the conversion is closer to 90%. What is not in either figure: session fees, idle fees, parking and taxes. The state cost table has the local medians, and cost per mile turns this into a comparison with petrol.

Sources

US figures from the October 2026 data build. How these sources are chosen, and what a figure here never claims, is on the methodology page.

Full charge

$23.95

At $0.35 per kWh at a DC post, charging losses included.

10–80% stop

$16.76

About 70% of the battery, which is what most trips use.

Cheapest state median

$0.28

Iowa, per kWh — the lowest state median with a comparable sample.

Priced stations

3,805

Stations in the directory that publish a per-kWh tariff.

CalculatorPrice a charge for your state and your tariff

US trims

Every version, year by year

This is the list the chart above is drawn from. The names are the EPA's own labels, kept exactly as published — spelling, abbreviations and all — because rewriting a source label is how a table stops matching its source.

1 rows from fueleconomy.gov

Show every EPA row (1)Year · trim · range

US trims and EPA range for the Chevrolet Bolt
Year	Trim	EPA range
2027	BOLT	262 mi

EPA figures are the US label; they are not converted from WLTP. A trim the EPA does not list has no row, and an all-wheel-drive version of a rear-drive model appears as its own row because the EPA tested it separately.

Questions

Answers, briefly

Short answers first, the reasoning below each. Every figure here comes from the same data as the rest of the page.

Still unsure about a term? The charging glossary covers the rest of them.

What connector does the Chevrolet Bolt use?

It lists J1772 for AC charging and CCS1 for DC fast charging. J1772 is what a home charger and a slow public post use; CCS1 is the fast plug for a longer trip. An adapter may bridge another standard, but support varies by vehicle and station.

How long does it take to charge a Chevrolet Bolt?

The catalogue's 65 kWh usable battery and 150 kW DC peak give a 10–80% session of about 25 minutes at a station that can deliver the power. AC charging peaks at 11.5 kW, which suits overnight charging rather than a trip stop.

What is the EPA range of the Chevrolet Bolt?

The 2027 Chevrolet Bolt is rated between 262 and 262 miles, depending on the trim. The highest figure belongs to the BOLT; every model year the EPA tested is listed on the page, and each row is a different version of the same car.

What does "US trim" mean on this page?

A trim is a version of the same car: same body, different wheels, motors or battery. The EPA tests each version separately, so one model can carry several range figures for the same year. Bigger wheels are the usual reason two rows differ, because they add drag and rolling resistance.

How much does it cost to charge a Chevrolet Bolt?

At the directory's median of $0.35 per kWh, filling the 65 kWh battery from empty at a DC post bills about $23.95, and a 10–80% session about $16.76. Both are metered energy, so the charging loss is inside them. The median is the middle of the per-kWh tariffs networks list; session fees, idle fees and parking are excluded, and a home tariff is often cheaper.

Can a Chevrolet Bolt use a Tesla Supercharger?

The Chevrolet Bolt's fast-charge plug is CCS1. Some Tesla sites in this directory report a CCS1 plug; whether a particular site accepts an adapter is not recorded, so filter the map for CCS1 before you rely on one.
